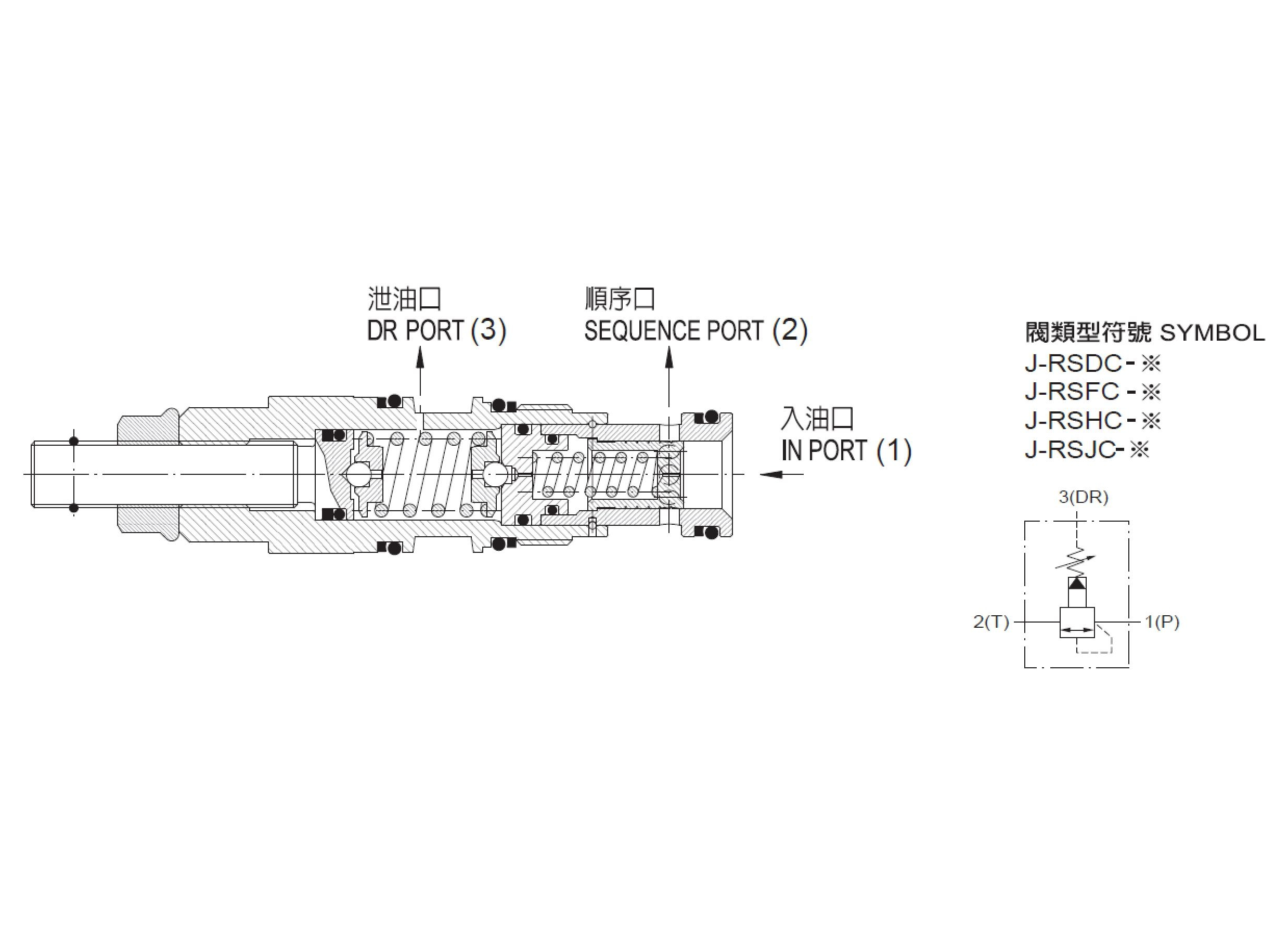

| SYMBOL J-RSDC-※ J-RSDE-※ J-RSDG-※ |
 |
SPECIFICATION
| MODLE | MAX.OPERATING PRESSURE kgf/cm2 |
PRESSURE TYPE | PRESSURE ADJ. RANGE kgf/㎝2 |
MAX. FLOW l/min |
WEIGHT kg |
|---|---|---|---|---|---|
| J-RSDC-※ | 350 | A B C |
A : 7-210
B : 3.5-105 C : 10-420 D : 2-60 E:7-280 |
60 | 0.17 |
| J-RSDE-※ | A B C D E | 120 | 0.29 | ||
| J-RSDG-※ | 240 | 0.64 |
HOW TO ORDER
| J | - | RSC | - | A | - | L | ||
|---|---|---|---|---|---|---|---|---|
 |
KNOB TYPE L : LEAKAGE PROOF, BOLT ROD ADJUST. |
|||||||
|
PRESSURE ADJUSTING RANGE A : 7-210kgf/ cm2 B :3.5-105kgf / cm2 C : 10-420kgf / cm2 D : 2-60kgf / cm2 E : 7-280 kgf / cm2 |
|||||||
 |
VAVLE SIZE RSDC : 60 l/min RSDE : 120 l/min RSDG : 240 l/min |
|||||||
|
SERIES NUMBER | |||||||
