台湾JGH久冈J-CBC/GA导压式抗衡阀

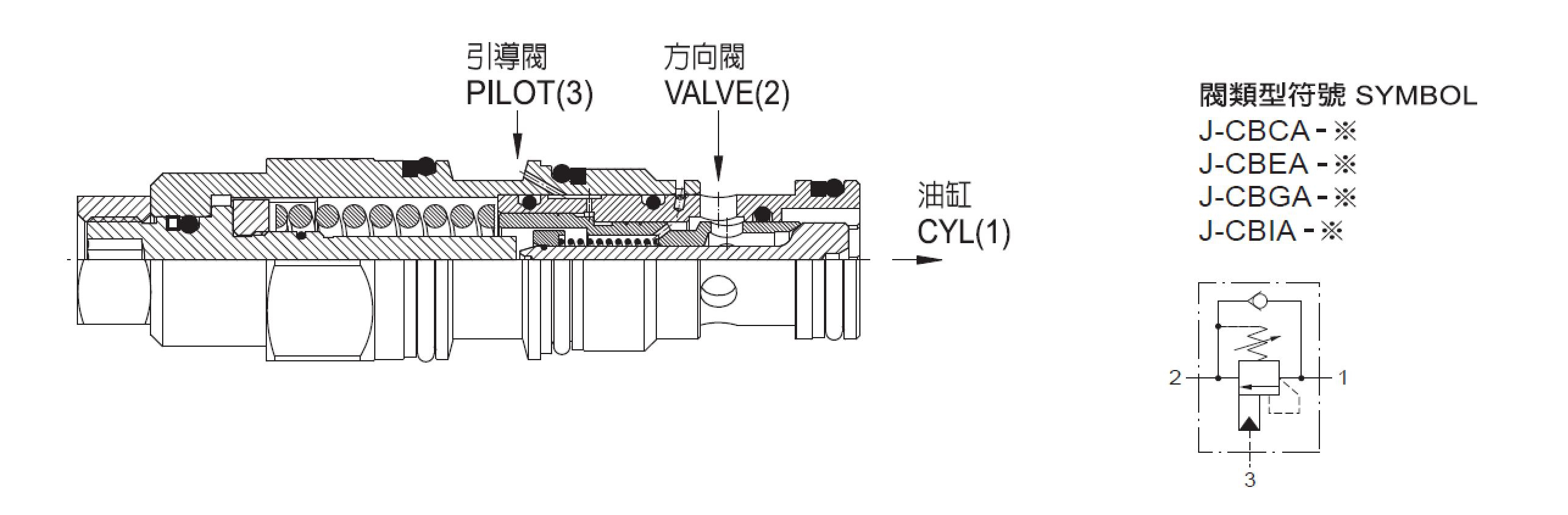

SYMBOL J-CBCA-※-L |
SPECIFICATION
MODLE | MAX.OPERATING PRESSURE kgf/cm2 |
PILOT RATED |
PRESSURE TYPE | PRESSURE ADJ. RANGE kgf/㎝2 |
MAX. FLOW l/min |
WEIGHT kg |
---|---|---|---|---|---|---|
J-CBC/GA-※ | 350 | 3:1/4.5 | G H I J |
I : 28-105
H : 70-280 G:10-30 J:140-350 |
60 | 0.16 |
J-CBE/GA-※ | G H I J | 120 | 0.43 | |||
J-CBG/GA-※ | G H I J | 240 | 0.66 |
HOW TO ORDER
J | - | CBC/GA | - | I | - | L | ||
---|---|---|---|---|---|---|---|---|
KNOB TYPE L : LEAKAGE PROOF, BOLT ROD ADJUST. |
||||||||
PRESSURE ADJUSTING RANGE I : 30-105kgf / cm2 H :70-280kgf / cm2 G : 10-30kgf / cm2 J : 140-350kgf / cm2 |
||||||||
VAVLE SIZE CBC/GA : 60 l/min CBE/GA : 120 l/min CBG/GA : 240 l/min |
||||||||
SERIES NUMBER |
